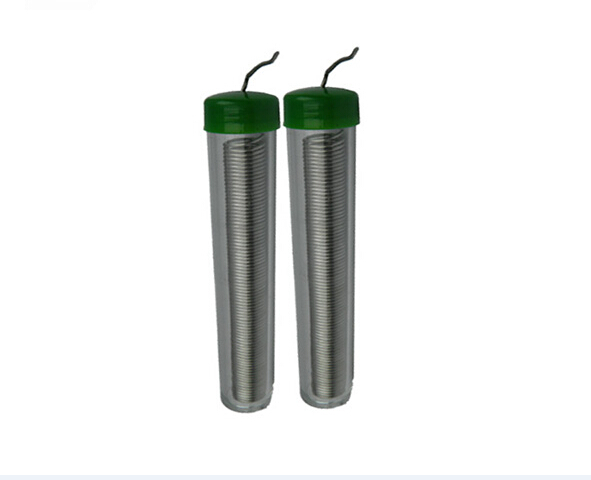

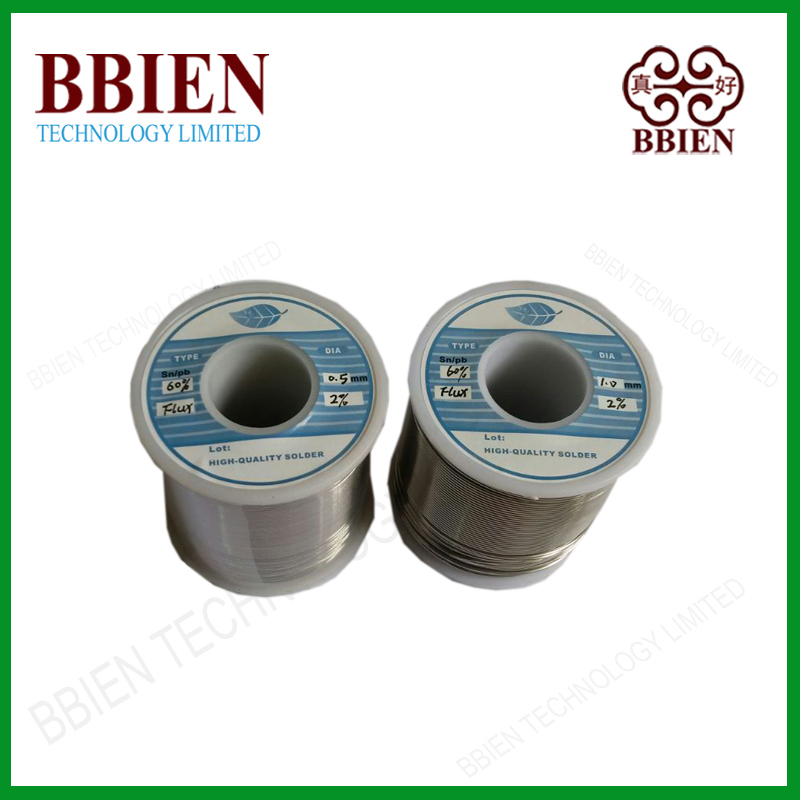

Sn60Pb40 no clean Pb flux core solder wire
main Pb solder wire
Sn60Pb40 no clean Pb flux core solder wire
Sn60Pb40 RA water-soluble core wire is a very low halide(<1000ppm), water-soluble flux cored solder.the flux core type can be divided into 1.5%,2.0%.3.0% Its post-soldering residue is water-soluble and can be easily cleaned with DI water. Our water-soluble core wire is recommended for use in any hand soldering application where high flux activity is desired.
Datasheet for Sn60Pb40 core wire solder
main content Impurity content%
Standard Sn Pb Sb Ag Cu Fe Zn Bi Al As Ni Cd
60±2 bal ≤0.10% ≤0.02% 0.1% ≤0.02% ≤0.001% ≤0.10% ≤0.001% ≤0.03% ≤0.01% <0.01%
Testing result 60.5 bal 0.032 0.0002 0.0057 0.002 0.0015 0.006 0.0024 0.0021 0.0032 0.0001

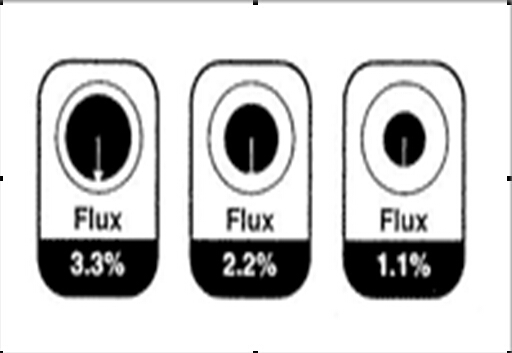

Flux core contents



So far,our Sn60Pb40 flux core solder wire have been exported to Colombia, Mexico, Poland, Russia etc.
Feature:
1.       Favorable fatigue resistance and outstanding performance
2.       Ultra high electrical conductivity
3.       Mid-temperature soldering, characterized by nice softness and wonderful wetting property.
4.       .high-performance soldering flux, fast melting speed, good fluidity and quick speed to coat with tin.
5.       lower soldering flux spatter rate during soldering.
6.       Sldering flux is evenly distribution with good continuity.
7.       very little smoke and smell gas

In addition, Sn60Pb40 also have the following charateristics

  1. Can applied in radio, communication, meters and instruments
  2. Residue is easy to remove by hot air after soldering work if necessary
  3. Available in many alloy compositions
  4. Smooth surface, good fluid melting rate
  5. Good mechanical performance, moisture and bright weld spot
  6. Forms: bar and wire
  7. Flux types: no-clean, rosin and water-soluble liquid
  8. Tin solder, welding, lead-free solder bar and wires are also available
  9. Very few scraps .
