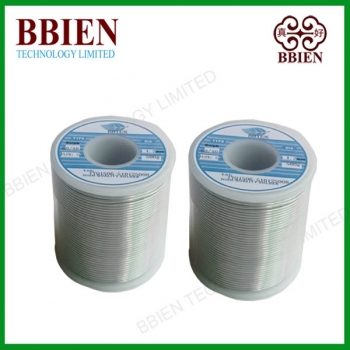

Soft soldering wire Sn62Pb36Ag2 with 179degree melting
Soft soldering wire Sn62Pb36Ag2 with 179degree melting
During the processing of our‘No-Clean Solder Wire’, strict quality control management and the advanced drawing process are implemented. Meanwhile, the ratio of both trace metals and impurity substances in the wires are precisely controlled and the welding flux in the wires is distributed uniformly to insure welding continuity. Besides a clean and tidy packing as well as a bright and smooth surface,BBIEN TEchnology's Sn62Pb36Ag2 soft soldering wire, in welding process, also provide excellent wettability and weldability, keeping the process in a friendly environment of few smell, few smoke, few flitting, and non-toxic environment.

Diameter 0.5mm0.6mm0.8mm1.0mm.2.0mm
Tolerance0.020.020.030.030.04
Net Weight0.5kg、1.0kg
All kinds of wires(e.g. tin-lead, lead-free, flux core, solid core)

Feature of BBIEN TECHNOLOGY Sn62Pb36Ag2 lead silver solder wire:
Nontoxic and environment friendly、Low melting point and stabilitytidiness surface and not easy to tienon-flux pollutionno dross residual.



  1. Applied in the field of low temperature electronics surface mounting technology, Such as tin- Lead hand soldering, PCB secondary soldering. Application to thermal cut-off、thermal protector、Capacitors heating fuse, etc.
  2. PHYSICAL CHARACTERISTICS                 :



    *ALLOY Sn62Pb36Ag2

    3.1 Melting point      : 175°C – 180°C

    3.2 Specific weight    : 7.85 g/cm3

    3.3 Wire diameter     : From 0.3 mm to 5 mm

    3.4 Working temperature: ~138°C - 210°C


    *FLUX RMA & RA

    Halide: 0.5 %

    Acidity index: N/A

    Non corrosive

    Solderability: Good on Copper substrates and excellent on surfaces of tin
